Tilt Angle Bracket

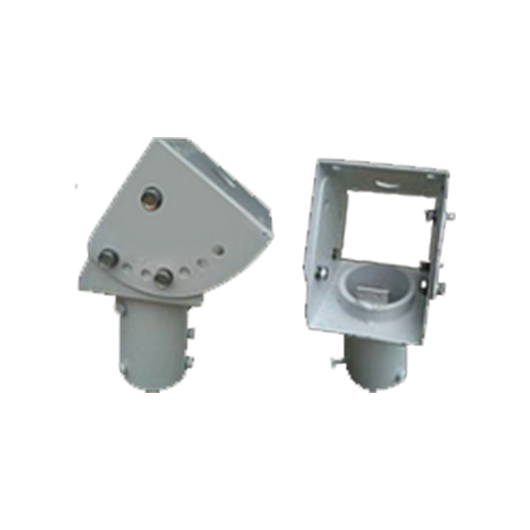

Adapter Bracket
Our Adapter Bracket is made of Q235 Grade Steel, Hot Dip Galvanized, durable and 360 degree rotary mechanism with South 0°, 15°, 25°, 45° tilt angle settings. Module specific design to accommodate different types of PV modules. Easy Assembly and handling.
Features

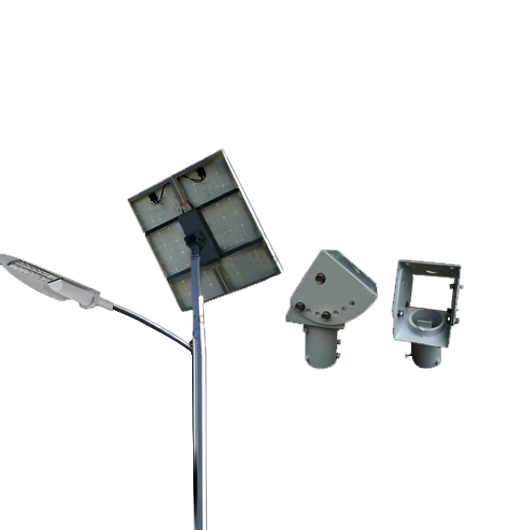

Top Mount Design

Usually the Panels are mounted on the top of the pole with single-panel and dual-panel designs.

Side Mount Design

If the system required more PV panels or the height of the pole is more than 12M, Truelite recommends using a side mounting structure for better security and safety.

Accessories

Tilt Angle Bracket

Solar Lighting
Product Specification
Material Specifications
Steel GradeQ235
Thickness3mm/ 3.5mm
*All parameters are measured @ ambient temperature Tc 25 degree

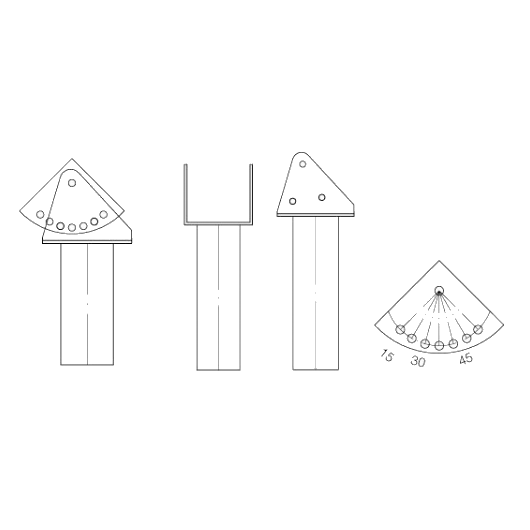

Drawing
