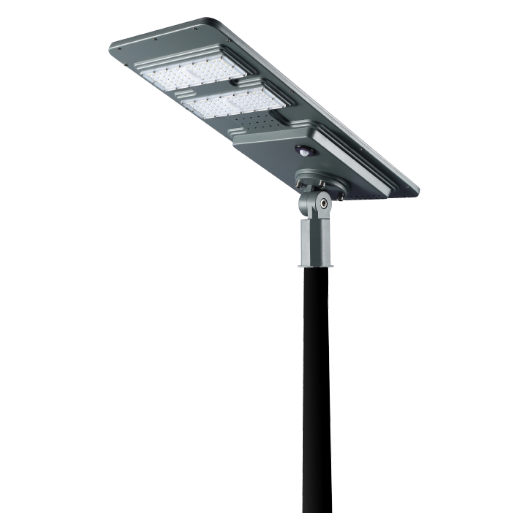

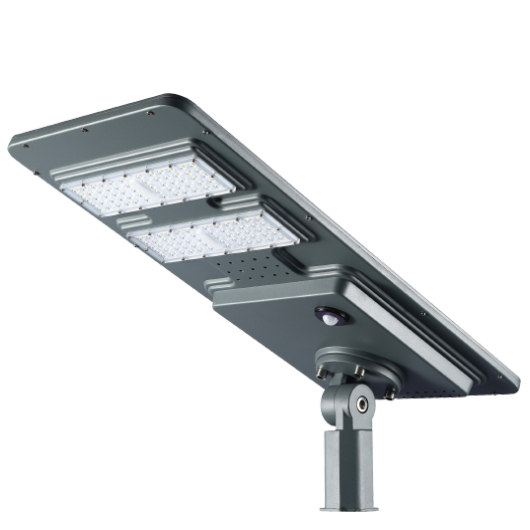

All in One Solar Street Light eco – 40W
TLAIO40W
Truelite All in One Smart Solar light is the 3rd Generation all in one series with high efficiency and advanced technology. The light integrates the green-energy parts solar panel, LED lamp and the lithium battery into a single product system to gain the solution of low-energy, long-time, high-luminance and free maintenance. The light has better output with more longer battery backup than the normal all in one solar light. The housing is made from aluminum alloy, co-operating with good waterproof, dust-proof and airless technology. The luminaire head has an inbuilt installation bracket.
Features
Compact Design
Our design and technology implementation have been driven by our desire to eliminate the need for bulky external battery boxes and external solar panels and achieve All in One Solar Powered Street Light.
Technology
Require less maintenance and reduced parts replacement due to initially incorporating higher quality components.
Reduced Damage/Theft
By locating directly on the light fixture and placing the battery within, the risk of damage, theft or tampering is greatly reduced. There are no wires in the street pole, which means that the wire itself (which exists in regular street lights) can’t be stolen and sold for scrap ruggedized.
Insect Swarms
The solar powered street light uses LED lighting which does not produce Infrared light, and therefore will not attract insects.
Smart MPPT Solar Controller
Customized working mode for dimming and working hours.
Remote Setting
Advanced metering and remote control options.
Lithium Battery
Integrated lithium battery bank with more than 6000 cycles,12 hours 100 % brightness working with automatic dusk to dawn operation.
All in One Solar Street Light
Truelite All in One Smart Solar light is the 3rd Generation all in one series with high efficiency and advanced technology. The light integrates the green-energy parts solar panel, LED lamp and the lithium battery into a single product system to gain the solution of low-energy, long-time, high-luminance and free maintenance. The light has better output with more longer battery backup than the normal all in one solar light. The housing is made from aluminum alloy, co-operating with good waterproof, dust-proof and airless technology. The luminaire head has an inbuilt installation bracket.
Hospitality
Humanitarian Aid
More than 20000 solar street light successfully manufactured and delivered in time in the last three years.
Street Lighting
Solar Lighting
Product Specification
| All in One Solar Street light ECO - 40W | |
|---|---|
| Electrical Data | |
| Operating Voltage | 12VDC |
| Driver Power Efficiency | >90% |
| Rated Power | 40W |
| Power Factor(PF) | >0.95 |
| Total Harmonic Distortion | < 20% |
| Drive Maximum Current from Battery Discharge | 10 Amps |
| Dimming | Optional |
| Control Method | Automatic dusk to dawn / Time Control / Manual ON-OFF |
| Lighting Modes | 100% Continuous lighting / Energy saving / Customized modes. |
| Discharge Time | >24 Hours |
| Light Data | |
| Color Temperature | 3000K/4000K/5000K/5700K |
| CRI | >83 |
| Beam Angle | 10°/ 25°/ 40°/ 60°/ 90°/ 120°/ 150° |
| Efficiency of LED | 150 lm/W |
| Luminous Flux | 6000 lm |
| LED Chip | SMD2835 |
| Service Life | 60000 Hours |
| Environmental Data | |
|---|---|
| Working Ambient Temperature | -40° to +60° |
| IP Grade | IP65 |
| Certificate | CE,IK08,IP65,RoHS |
| Mechanical Data | |
| Dimension | 1010*430*145mm |
| Luminaire Fixing | Pole top/Tenon mount |
| Solar Module | |
| Wattage | 60W 18V |
| No of cells | 36 Cells |
| Cell Type | MONO Crystalline |
| Battery Bank | |
| Battery Capacity | 32Ah / 12.8V |
| Working Hours daily | 12 hours |
| Total Battery Working Hours | 24 hours (with dimming) |
| Battery type | LiFePO4 (li-ion cells) |
| Option for Battery Maximum Capacity | 768WH |
| *All parameters are measured @ ambient temperature Tc 25 degree | |
Dimension
