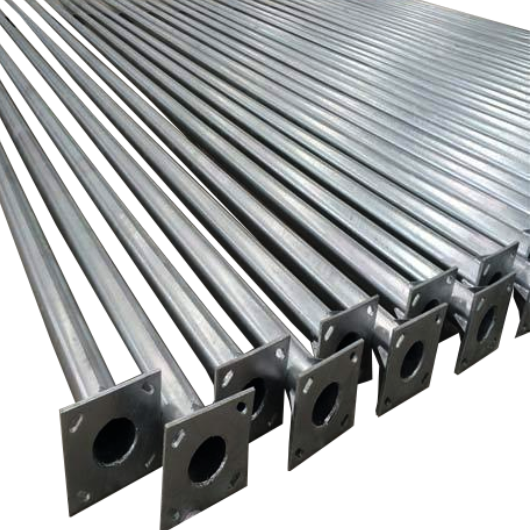

Light Pole-Conical Pole

3 ~ 10 Meters

The street lighting pole is used for a variety of applications including Major and Minor roadway lighting, Industrial, Commercial and Residential subdivisions, Shopping centers, and Car park lighting. The street lighting poles are designed with or without an outreach arm, in either single or double arrangement. These poles are available with a maximum standard height of 12 meters and a maximum outreach of 4.5 meters.

Features

Pole shaft & base plate is made of grade S235JR conforming to en 10210-1

All poles are hot dip galvanized according to EN 1461, and can be powder coated or painted.

Pole designed according to bs EN 40

Anchor bolt of grade 8.8 (HDG)

Pole & bracket are hot dip galvanized (average 100 microns) to BS EN 1461

Designed to withstand wind speed of 160km/hr

Electrical Data
Pole Height	3 to 10 Meters
Material	Steel
Type	Conical
Thickness	2.5~4.5mm

Electrical Data

Pole Height

3 to 10 Meters

Material

Steel

Type

Conical

Thickness

2.5~4.5mm

Surface Treatment	Hot DIP Galvanized
Wind Speed	160km/hr
Application	Street ways, Roadways
Style	Size and styles are variable as per customer request
*All parameters are measured @ ambient temperature Tc 25 degree

Surface Treatment

Hot DIP Galvanized

Wind Speed

160km/hr

Application

Street ways, Roadways

Style

Size and styles are variable as per customer request

*All parameters are measured @ ambient temperature Tc 25 degree
