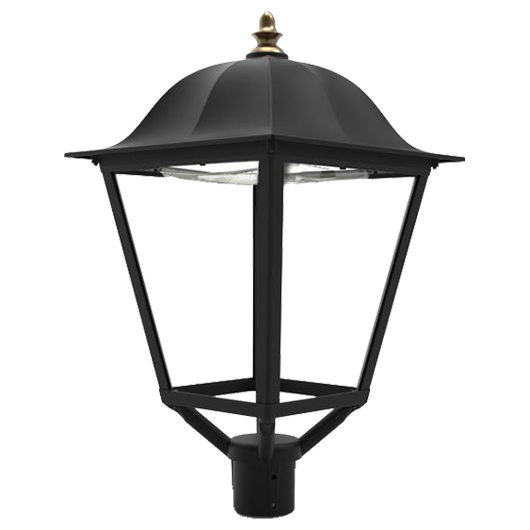

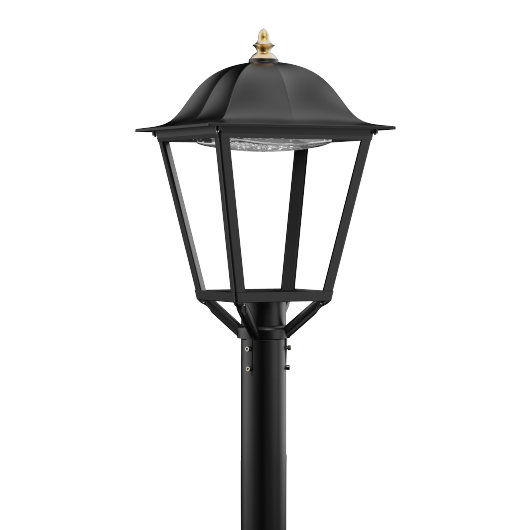

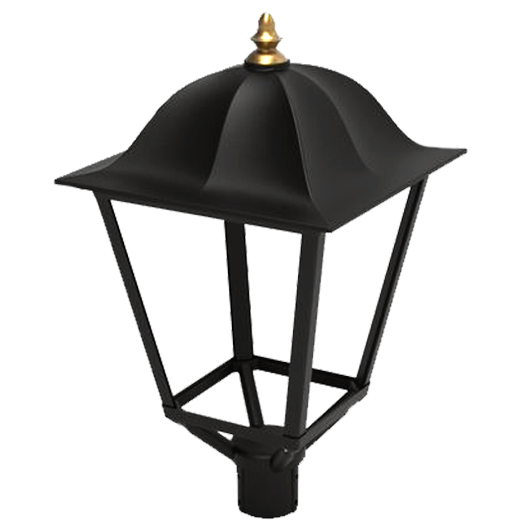

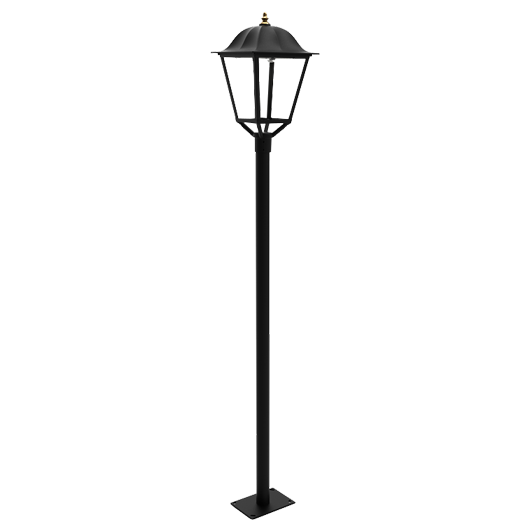

ORBI Classic AC Decorative light– 20 WATTS

TLSB-20W
Truelite Orbi classic Solar/AC Landscape Light is our answer to the professional lighting in challenging landscaping project requirements. Truelite Orbi classic uses next generation innovative technology built into modern and clean urban
pole top design. The luminaire offers 360° light distribution with increased efficiency and control for even area lighting in garden, parks and landscape applications.

Structured, partially frosted interior luminaire optics provides beautiful and effective light transmission and especially high visual comfort. Truelite Orbi classic has advanced, light control functions for dimming, motion detection and sensing also works dusk dawn automated working . Truelite Orbi classic Solar/AC Landscape Light is available in 20, 30,40 and 50 watts with energy-saving modes, optimized for applications up to 6M pole height, for small roads, garden pathways, decorative landscape area lighting applications using the power of sun.
Features
Light output
Provides up to3000lm light output & have high efficacy of 150lm/W.

Customized Working Mode
Working mode can be customized for dimming & working hours along with advanced metering & remote control options.

IP Rating
IP65 waterproof.

Smart Controller(optional)
Customized working mode for dimming with PIR sensor.

ORBI Decorative Light

20 l 30 l 40 l 50 Watts

Truelite Orbi 360° Solar/AC Landscape Light is our answer to the professional lighting in challenging landscaping project requirements. Truelite Orbi 360° uses next generation innovative technology built into modern and clean urban pole top design. The luminaire offers 360° light distribution with increased efficiency and control for even area lighting in garden, parks and landscape applications. Structured, partially frosted interior luminaire optics provides beautiful and effective light transmission and especially high visual comfort. Truelite Orbi 360° has advanced, light control functions for dimming, motion detection and sensing also works dusk dawn automated working . Truelite Orbi 360° Solar Landscape Light is available in 20, 30 and 40 watts with energy-saving modes, optimized for applications up to 6M pole height, for small roads, garden pathways, decorative landscape area lighting applications using the power of sun.

LED Lighting
You will find everything here
Product Specification
ORBI Classic– 20 WATTS
Electrical Data
Operating Voltage220-240V~50/60Hz
No of LEDs150 LEDs
Driver Power Efficiency>90%
Rated Power20W
Power Factor(PF)>0.95
Total Harmonic Distortion< 20%
DriverMeanwell
DimmingOptional
Light Data
Color Temperature3000K/4000K/5000K/5700K
CRI70* or 80 or 85
Beam Angle360° light distribution
Efficiency of LED150 lm/W
Luminous Flux>3000lm
Led ChipPhilips Lumileds SMD3030
Service Life50000 Hours
Environmental Data
Working Ambient Temperature-40° to +60°
IP GradeIP65
Relative Humidity(RH)10%-95%
CoolingConventional
CertificateCE/ROHS/IK08
Mechanical Data
Product FinishGray/Black
Light Fixture MaterialAluminium Die Casting
Dimension598*391*70 mm
Weight4.5 Kg
Luminaire FixingPole top mount
*All parameters are measured @ ambient temperature Tc 25 degree

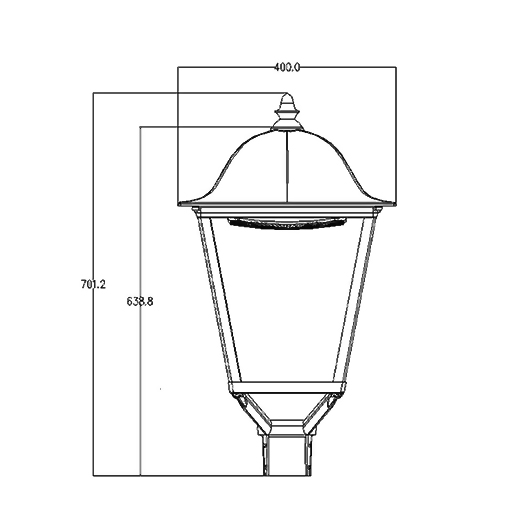

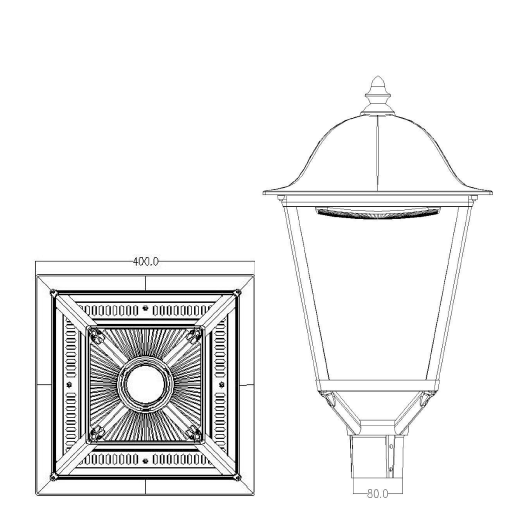

Dimension
Dimension
Certifications
IP65
CE
IK08
RoHS
