PHOS Solar Smart Street Light-40W
TLPD40
Truelite’s Phos 40W Smart LED Street Light represents the pinnacle of roadway lighting technology, offering tool-free access to minimize maintenance and ensure reliable performance. With system efficiency up to 165lm/W, it delivers precise light patterns for optimal energy savings. Premium Mitsubishi polycarbonate lenses and advanced micro-lens systems (Type II, III, IV) provide exceptional luminosity, uniformity, and low glare, enhancing road safety. Built for durability, it features an IP66-rated optical system, anti-UV polyester finish, and 3G vibration resistance. Available in 2700K–6500K color temperatures, this eco-friendly, up-light pollution-free solution is perfect for sustainable and cost-effective roadway illumination.
Features
Tool-Free Maintenance and Durability
Designed for easy access, reducing maintenance costs. Features an IP66-rated optical system, anti-UV polyester finish, and 3G vibration resistance for reliable performance in harsh environments.
High Efficiency and Energy Savings
Offers system efficiency up to 165lm/W with precise light patterns and a power range of 20W to 200W (Class I or II), maximizing energy savings while reducing project costs.
Advanced Optical Performance
Premium Mitsubishi polycarbonate lenses and micro-lens systems (Type II, III, IV) provide high luminosity, excellent uniformity, and low glare for enhanced road safety and comfort.
Eco-Friendly and Sustainable
ULOR = 0% with no up-light pollution. Available in a range of color temperatures (2700K–6500K), promoting environmental sustainability.
Smart Control and Versatility
Smart-enabled for efficient management and available with versatile design options, ensuring adaptability to various roadway lighting needs.
Hospitality
Humanitarian Aid
More than 20000 solar street light successfully manufactured and delivered in time in the last three years.
PHOS Smart Solar Street Light
20 ~ 110 Watts
The Truelite PHOS Smart Solar Street Light delivers advanced solar roadway lighting with tool-free access, reducing maintenance while ensuring reliable performance. With a power range of 20W to 110W and system efficiency up to 165lm/W, it provides precise light patterns for maximum energy savings. Its premium Mitsubishi polycarbonate lenses and micro-lens systems (Type II, III, IV) offer superior luminosity, uniformity, and low glare for enhanced road safety. Designed for durability, it features an IP66-rated optical system, anti-UV polyester finish, and 3G vibration ratings. Available in 2700K–6500K color temperatures, this eco-friendly, up-light pollution-free solution is ideal for sustainable, cost-effective roadway lighting.Street Lighting
Solar Lighting
Product Specification
| Model | TLPHD-40W |
| Power(W) | 40W |
| Input Voltage | 12V / 24V |
| Power Factor (PF) | ≥0.95 |
| Controller mode | Hybrid / Energy Saving / D4i / IoT / Customized |
| Ambient Temperature | -40°C to 55°C (-40 °F to 131 °F) |
| Storage Temperature | -40°C to 80°C (-40 °F to 176 °F) |
| Control Option | DALI-2, D4i,1-10V/ MPPT / Hybrid |
| Luminous (lm/W) | 164lm/W |
| Luminous flux (lm) | 6560lm |
| CCT | 2700K, 3000K, 4000K, 5000K, 5700K, 6500K |
| CRI | 70Ra, 80Ra, 90Ra |
| Beam Angle | Type-II (85*150°, 110*155°, 75*150°, 100*160°) / Type III (100*160°, 90*150°, 100*145°, 120*160°) / Type IV (125*160°, 90*150°) |
| LED Model | Lumileds 5050 |
| IP/IK | IP66/IK08 |
| Vibration Resistance | 3G |
| Materials | Heavy-duty die-cast aluminum (ADC12) |
| Surface Treatment | Anti-UV thermosetting polyester / 80 micron epoxy primer + Anti-UV thermosetting polyester (for extremely corrosive environments). |
| Body Color | RAL 9005 / RAL 9006 / RAL 900 /Customized |
| Mounting | Pole Top / Side Entry |
| Lifespan | L70 > 100000hrs, @Ta 25°C |
| Warranty | 5 Years / 10 Years (optional ) |
| Certification | CE,RoHS, IK08, IP 66, LM 80/79, 3G, etc. |
| Product Size | 537*210*88mm / 21.14*8.27*3.46 inches |
| Net Weight | 3.4kg / 7.50 lbs |
| Carton Size | 590*255*145mm / 23.23*10.04*5.71inches |
| Gross Weight | 4.3kg / 9.48 lbs |
| Application Field | Road & highway, urban road & street, residential area, parks, parking lot, riverside & jogging track |
| Optional Accessories | Zhaga socket, PIR sensor, Microwave sensor, Dali, etc. |
| *All parameters are measured @ ambient temperature Tc 25 degree | |
|---|---|

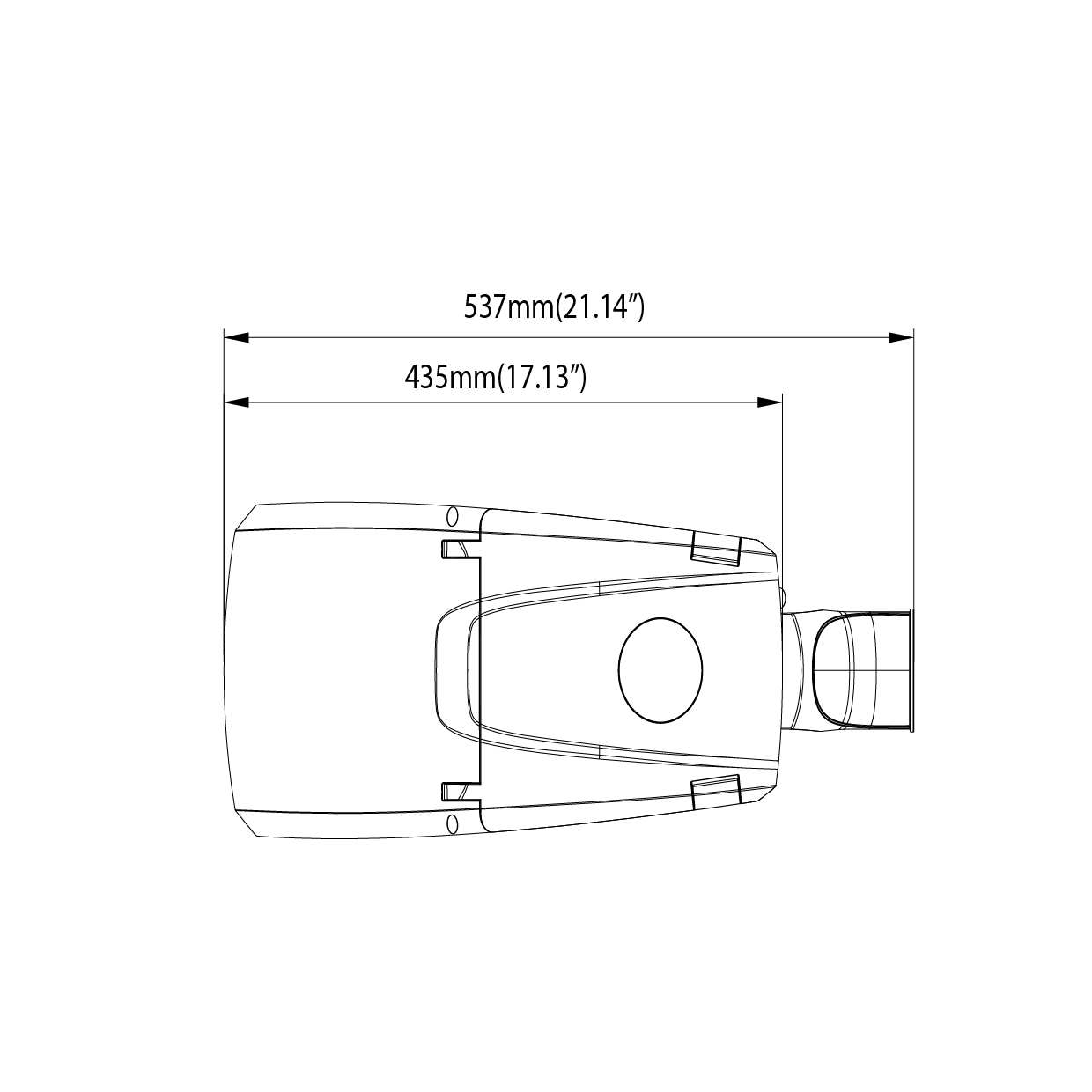

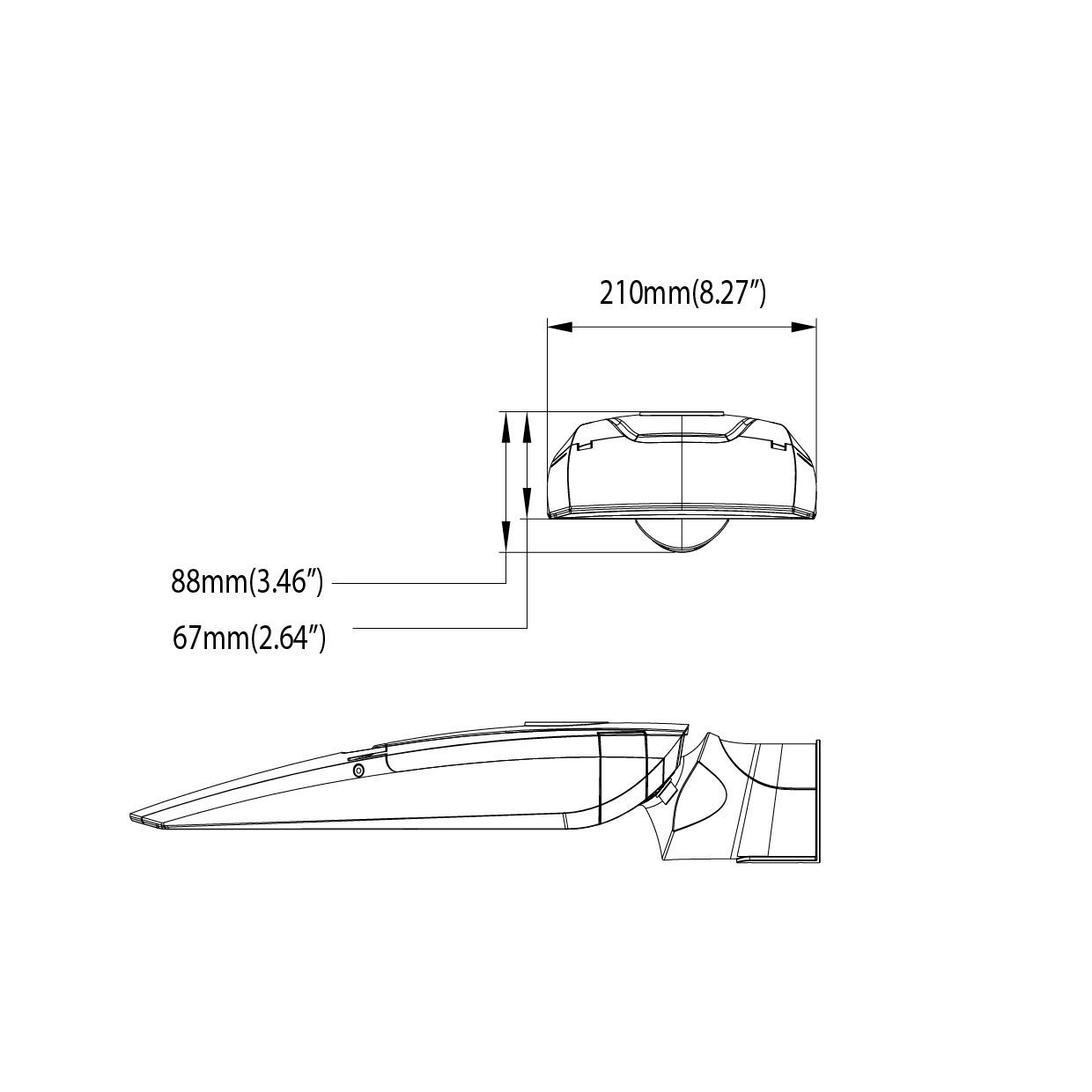

Dimension

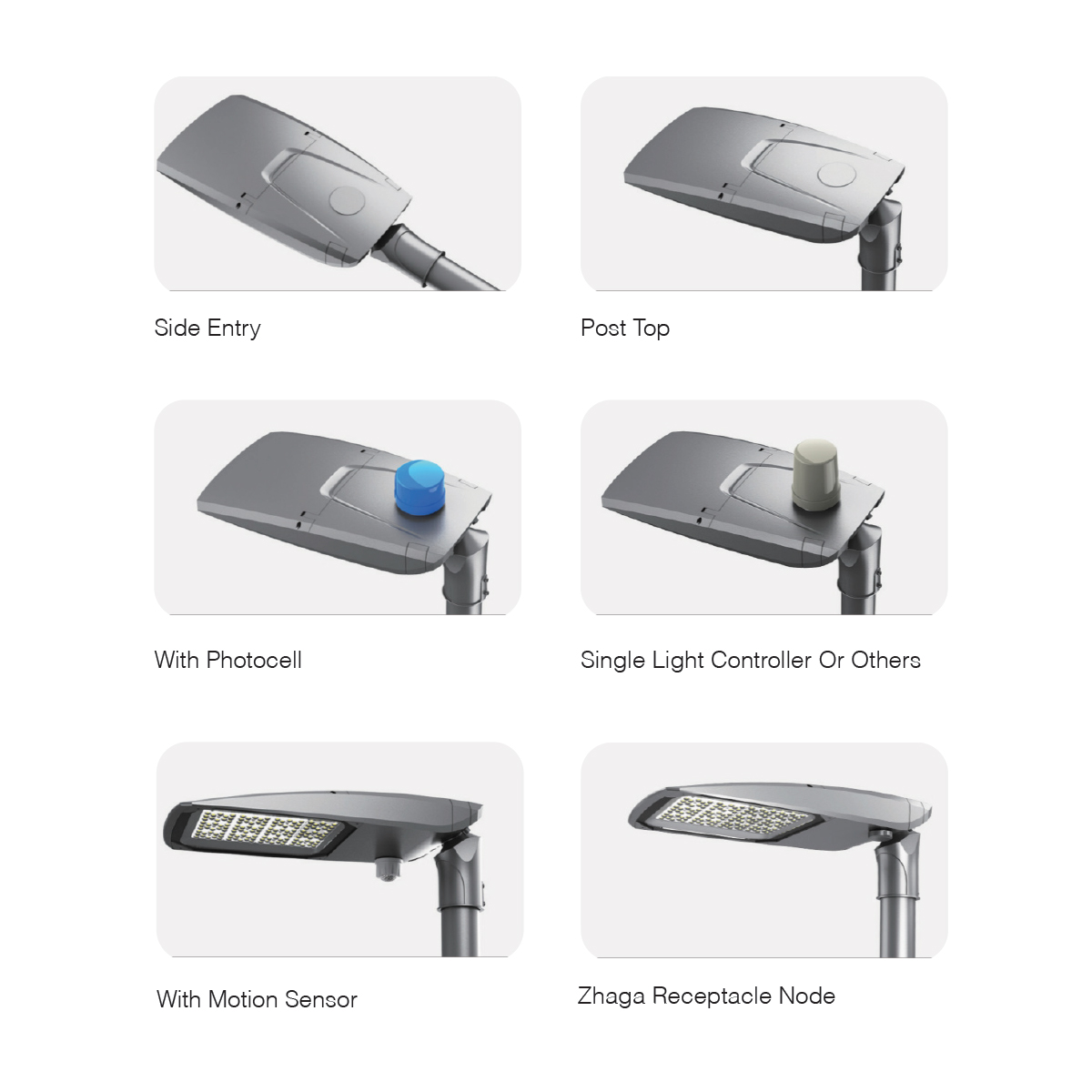

Mounting & Control Options
