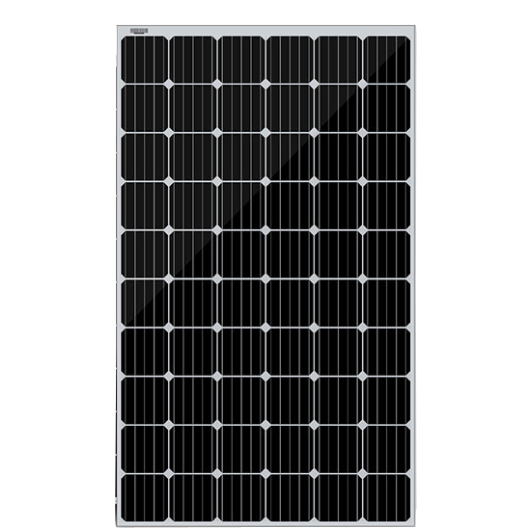

Solar Module – 320W

JGN320W-M

Our solar panel manufacturing process is defined by world-class technology, high quality workmanship, robust construction and are trusted around the world for their performance, quality, and reliability. These modules are specially manufactured for our lighting applications, with additional bus bars, bypass/blocking diodes, and cell combinations for our battery bank parameters.

10 Years Manufacture Warranty, Power Performance Warranty: 90% output 12 years, 80%output 25 yea

Features

36 Cells Solar Module specially designed for street lighting

Bypass diode minimizes the power drop by shade

The conversion efficiency of solar cells is above 19.2-20.6%

White tempered glass, EVA resin, weatherproof film, and anodized aluminum

frame to provide efficient protection from the severest environmental conditions

Accessories

Industries

Building / Warehouse Solar - For Businesses and Industries

Solar Panel

100 l 120 l 180 l 240 l 320 Watts

Our solar panel manufacturing process is defined by world-class technology, high quality workmanship, robust construction and are trusted around the world for their performance, quality, and reliability. These modules are specially manufactured for our lighting applications, with additional bus bars, bypass/blocking diodes, and cell combinations for our battery bank parameters. 10 Years Manufacturer Warranty, Power Performance Warranty: 90% output 12 years, 80%output 25 years

Villa Communities

Solar Lighting

Solar Projects

You will find everything here

Product Specification

320W/ 72 Cells Mono - Crystalline Solar Module
Electrical Data \| STC
Cells Type	Mono-Crystalline,
Maximum Power Pmax(W)	320±3% W
Open Circuit Voltage (Voc)	43.2 V
Short Circuit Current (Isc)	9.42 A
Maximum Power Voltage (Vmp)	36.0 V
Maximum Power Current (Imp)	8.89 A
Module Efficiency (%)	19.2%
Solar Cell Efficiency (%)	21.4%
Series Fuse Rating (A)	15 A
Maximum system voltage (V)	1000 V (IEC / UL)
Fill factor (%)	78.2
Operating Temperature (°C)	-40°C to +85°C
Module Fire Performance	CLASS A (IEC 61730)
Power Tolerance (%)	± 3%
Protection class IEC	Class I
Mechanical Data
No of cells	72 cells (6X12)

Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C. Measurement uncertainty: ±3 % (Pmax).
Dimensions	1956X987X40
Weight	20 kg
Front Cover	3.2 mm tempered glass
Frame	Anodized aluminium alloy
J-Box	IP67, 3Diodes
Cable	4.0 mm² (IEC), 12 AWG (UL) ,900 mm
Connector	MC4 series
Maximum Static Load, Front	5400Pa
Maximum Static Load, Back	2400Pa
Application Classification	Class A
Luminaire Fixing	Pole top/Tenon mount
Temperature Characteristics
Short Circuit Current Temperature Coefficiant %	0.06
Open Circuit Voltage Temperature Coefficient %	-0.34
Maximum Power Temperature Coefficient %	-0.47
Nominal Module Operating Temperature	43±2 °C
Under Nominal Module Operating Temperature (NMOT), irradiance of 800 W/m2, spectrum AM 1.5, ambient temperature 20°C, wind speed 1 m/s.

Dimensions

Certifications
