SunWrap – Foldable Solar Panel (HEXAGON) -150W
TLSWFH150
Truelite Introducing SunWrap Foldable Solar Panels an innovative modular solution for vertical installations like solar street lights, surveillance cameras, and traffic signals. Featuring customizable polygonal designs, they adapt to various pole sizes while reducing transportation volume by 60% and costs by over 30%. Built with high-quality tempered glass, monocrystalline silicon, and durable aluminum frames, these panels offer over 20 years of lifespan, excellent UV resistance, and optimal performance even in harsh environments. Experience unmatched efficiency, durability, and versatility with SunWrap.
Features
Fit for Various Sizes
360° All-Day Charging
With half of the cylindrical solar tube always facing the sun, it ensures continuous charging throughout the day, generating more power efficiently.
Modular Installation
The modular design incorporates male and female sliding installation structures, making the installation process straightforward and hassle-free.
Strong Wind Resistance
Featuring a smaller wind resistance area and a robust installation bracket, the system offers exceptional wind resistance, withstanding speeds of up to 160 km/h.
Snow-Free Performance
The vertical design eliminates the risk of snow accumulation, ensuring uninterrupted power generation during winter.
Dust and Sand Resistance
Sand and dust cannot accumulate on the vertically installed solar panels, reducing the need for frequent cleaning and maintenance.
Hailstone Protection
The system is impervious to hailstones, eliminating the risk of damage that can shatter traditional solar panel glass.
Aesthetic Appeal
Vertical PV cylinders seamlessly integrate with mounting poles, blending into the environment without compromising the surrounding visual beauty.

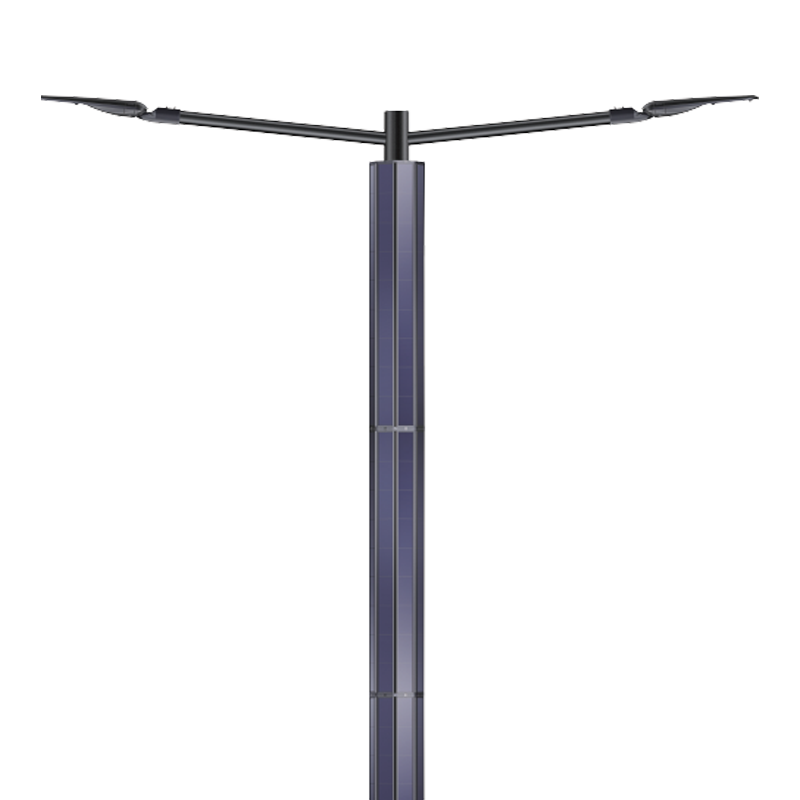

Street Lighting

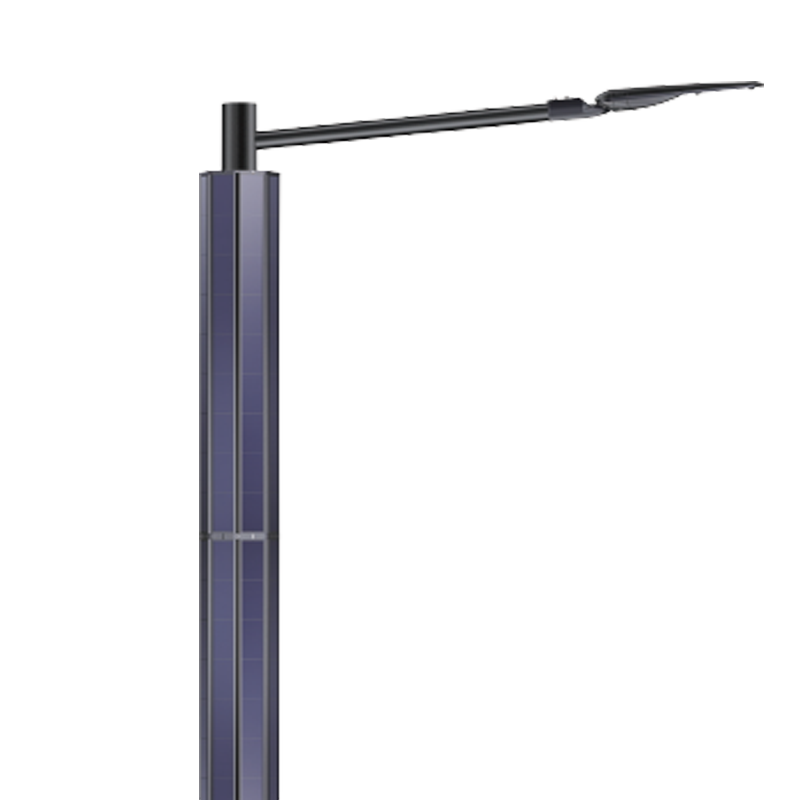

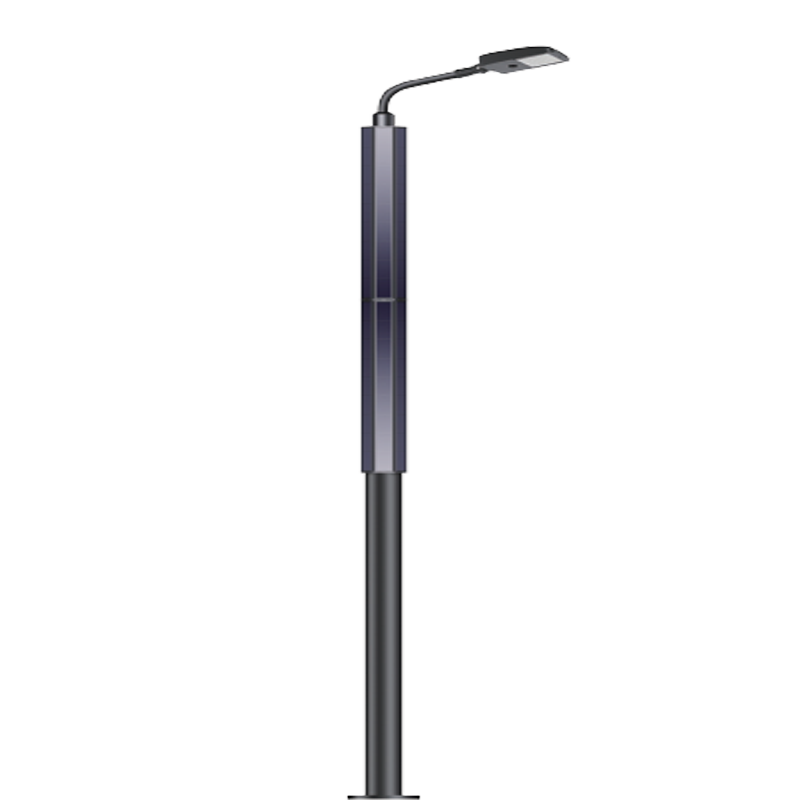

SunWrap-Integrated Solar Pole

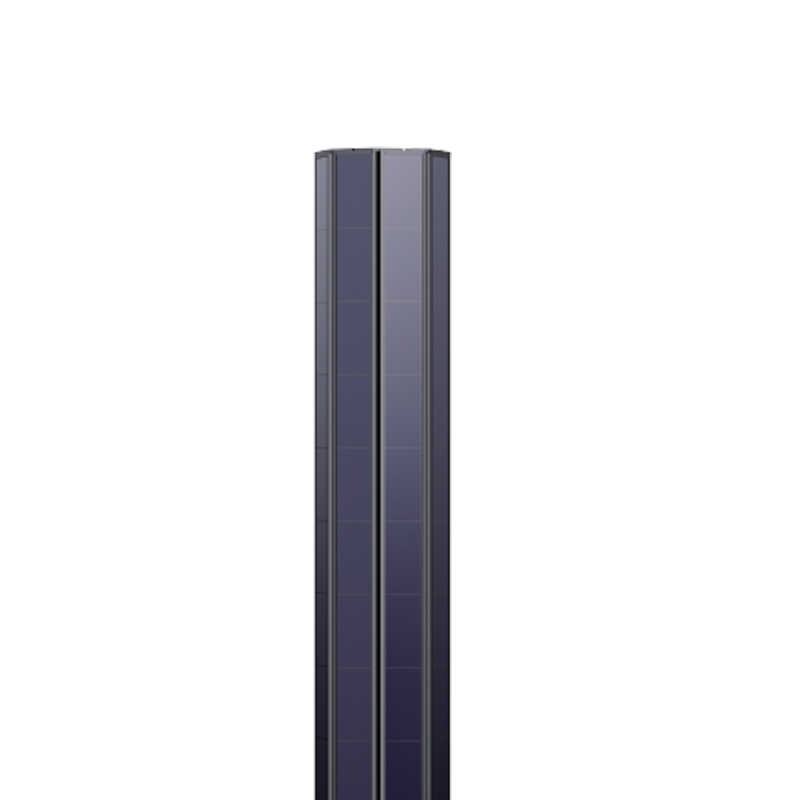

Vertical Solar Modules
Product Specification
| Product Specifications | |
|---|---|
| Pmax | 150W - 18 / 36 |
| Vmp | 18.0V / 36.0V |
| Imp | 8.33A / 4.16A |
| Dimension | L1550*D225mm / L1550*D225mm |
| Pole diameter | 120mm / 120mm |
| Open Circuit Voltage (Voc) | 21.6V / 43.2V |
| Cell efficiency | 22.5% / 22.5% |
| Cable & Connector | 2.5mm Universal MC4 / 2.5mm Universal MC4 |
| Materials | Tempered glass + aluminium profile / Tempered glass + aluminium profile |
| Short Circuit Current (Isc) | 9.16A / 4.58A |
| Power Tolerance (w) | ±3% / ±3% |
| Mechanical Load | Front 5400PA/back 2400PA |
| *All parameters are measured @ ambient temperature Tc 25 degree | |
|---|---|

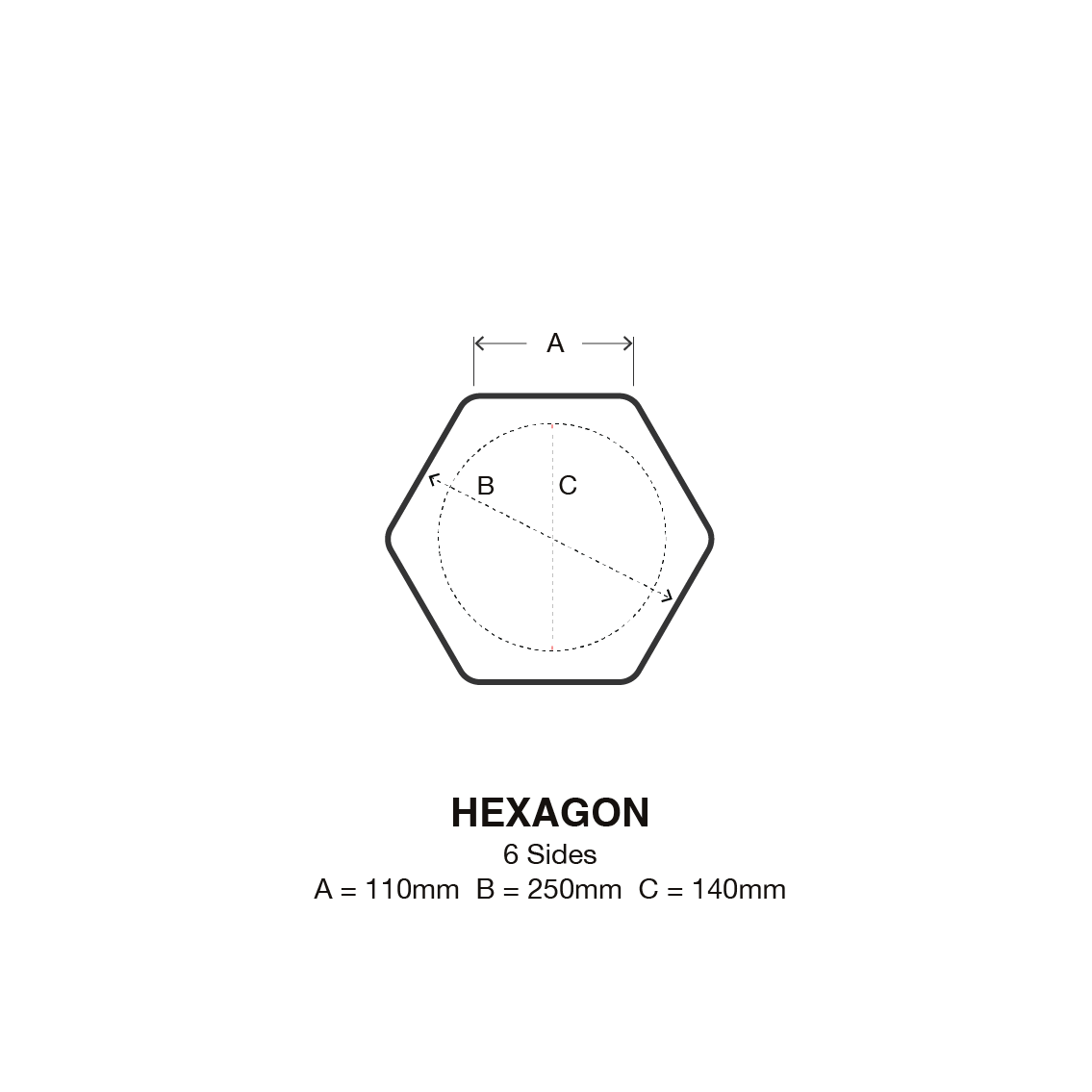

Dimension

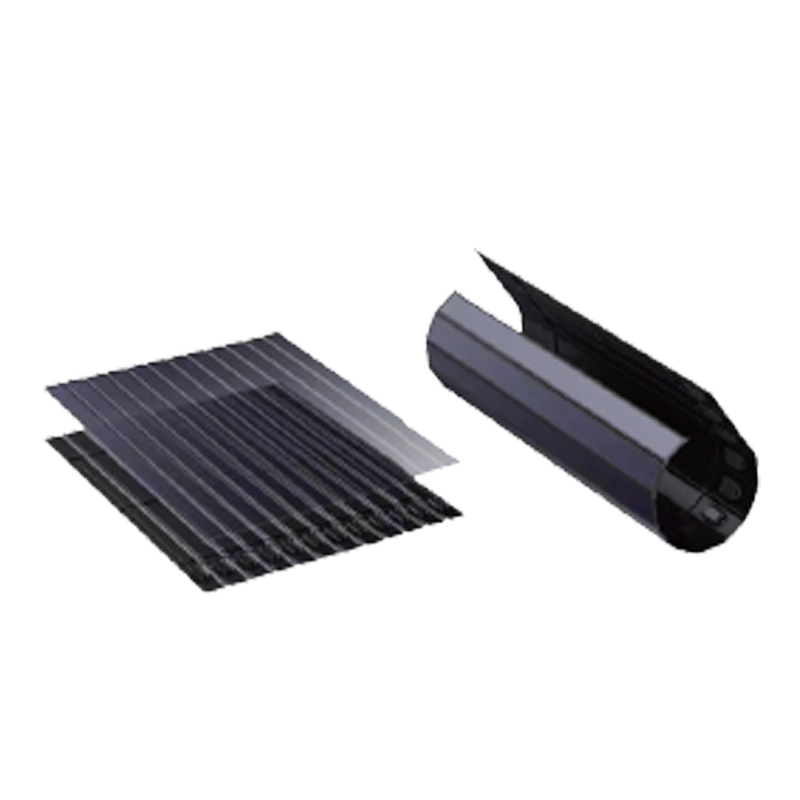

Foldable Solar Panel
