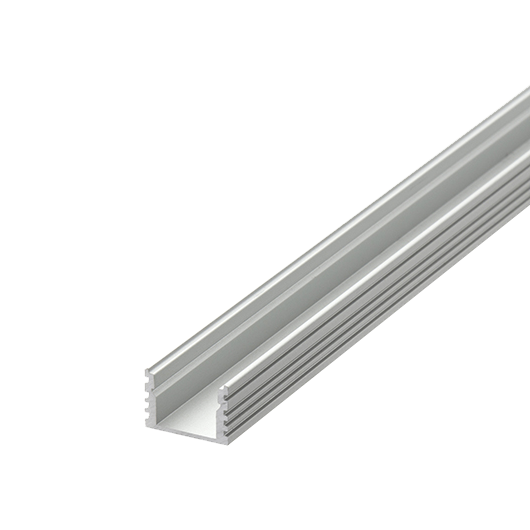

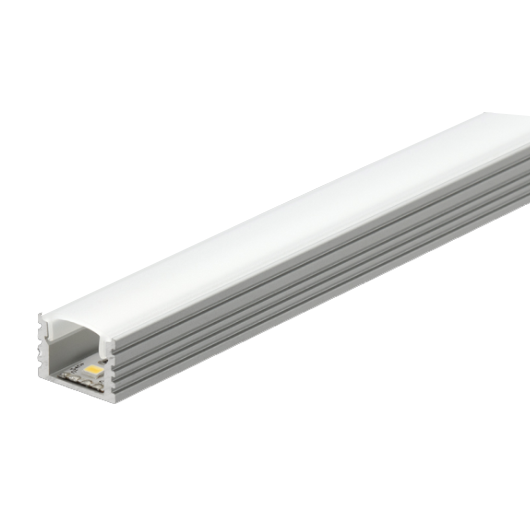

SURFACE LED PROFILE

TLAP08H-F122IW
Truelite Ledtrack series aluminum profile tracking systems offer very high quality solutions for linear lighting installations, housing LED flexible strip lights or individual modules. Made of extruded anodized aluminum, Ledtrack systems offer huge flexibility for cove, recessed and hidden lighting requirements while affording excellent heat sink capabilities. The Ledtrack systems from Truelite comes with T5 temper profiles made of pure 6063 series aluminum and finished in state of the art manufacturing facilities to offer a industry leading product.

Truelite Ledtrack systems use German made Bayar polycarbonate lighting diffusers as standard across the entire product range. Customers can choose from clear, opal matt and frosted diffusers for different applications. Ledtrack also offers acrylic diffusers for custom specific requirements incorporated into our tracking systems.

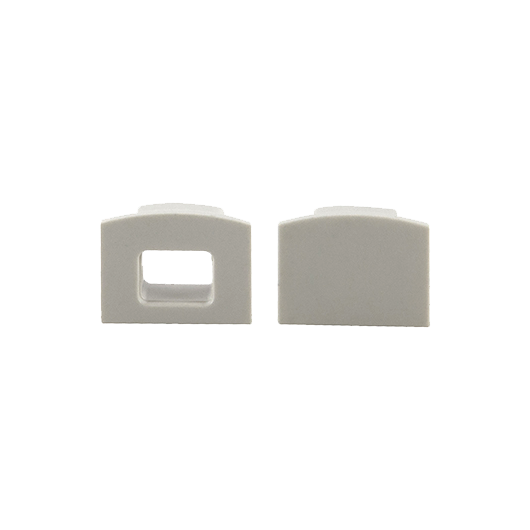

Truelite Ledtrack systems also come with appropriate end caps, made of high quality ABS material, for sturdy and tenacious installations. Optional connectors and mounting clips are also offered in stainless steel and ABS material.
Features
Extruded anodized 6063 aluminum with T5 temper

Premium Bayer diffusers for long durability and color uniformity

Universal design suits most led flexible strips

Supported end caps and mounting clips accessories

Sturdy and slim profiles

Standard product size is 200cm, custom size up to 300cm

Custom design and shapes available

Indoor Lighting

LED Track
Truelite Ledtrack series aluminum profile tracking systems offer very high quality solutions for linear lighting installations, housing LED flexible strip lights or individual modules. Made of extruded anodized aluminum, Ledtrack systems offer huge flexibility for cove, recessed and hidden lighting requirements while affording excellent heat sink capabilities. The Ledtrack systems from Truelite comes with T5 temper profiles made of pure 6063 series aluminum and finished in state of the art manufacturing facilities to offer a industry leading product. Truelite Ledtrack systems use German made Bayar polycarbonate lighting diffusers as standard across the entire product range. Customers can choose from clear, opal matt and frosted diffusers for different applications. Ledtrack also offers acrylic diffusers for custom specific requirements incorporated into our tracking systems. Truelite Ledtrack systems also come with appropriate end caps, made of high quality ABS material, for sturdy and tenacious installations. Optional connectors and mounting clips are also offered in stainless steel and ABS material.

Linear Lighting

LED Lighting
You will find everything here
Product Specification
PRODUCT SPECIFICATIONS
Product FinishAluminium 6063 Matt Finish
External finishAnodized
Standard length1000mm
Max length3000mm
Width17.5mm
Inside width12.2mm
Height8mm
Compatible strip size8mm / 10mm
Diffuser typeClear / Opal Matt / Frosted
AccessoriesEnd caps / Mounting Clips
ApplicationIndoor
Weight400gms/M ± 10%
*All parameters are measured @ ambient temperature Tc 25 degree

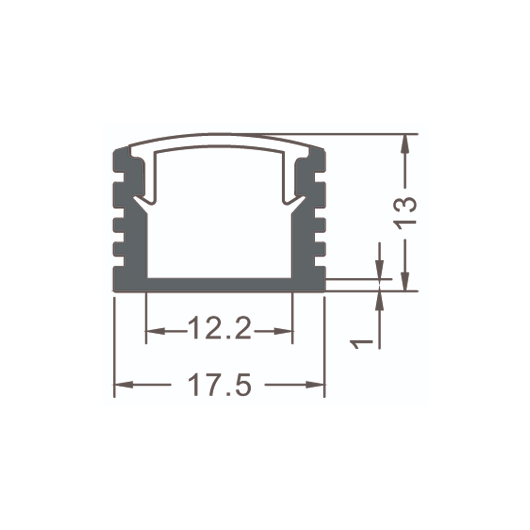

Dimension
Certifications
CE
