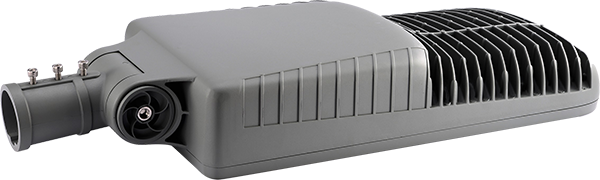

THOR Smart Street Light-90W
TLT9-12600
Truelite’s Thor smart – 90 Watts solar LED street light is the most advanced form of solar roadway lighting available, that integrates a lithium battery and smart controller into the light head that can provide up to 15000 lumens and 24 hours of battery backup in completely automated operation. Thor smart – 90 Watts by Truelite was developed after the huge success of our 4G smart light on the same principle and technology for higher lighting requirements. The light has a better output with a longer battery backup than regular all-in-one solar lights. The IP67 THOR solar street light exceeds the standards in energy efficiency, design, and optics and the wide options of beam angles make the best choice for area illuminations.
Features
IP67 Weatherproof Fixture
The Truelite Thor solar street light series has a complete ABS plastic external housing, with aluminum bars integrated inside for efficient heat dissipation, perfectly designed for any outdoor applications.
Battery Bank
Integrated lithium battery bank with more than 6000 cycles.
12 hours 100 % brightness working with automatic dusk to dawn operation.
Maximum capacity of 2160 Wh.
Solar Panel
Thor by Truelite is equipped to connect 72 cell solar panels up to 325 watts.
High-efficiency design; 20% efficiency.
External solar panels make the system flexible for any geographical conditions and scalability of the panel size to meet low irradiance project locations.
Area Lighting
Car Parking
Hospitality
Humanitarian Aid
More than 20000 solar street light successfully manufactured and delivered in time in the last three years.
Street Lighting
THOR Smart Street Light
50 I 60 I 70 I 80 I 90 I 100Watts
Truelite’s Thor smart solar LED street light is the most advanced form of solar roadway lighting available, that integrates a lithium battery and smart controller into the light head that can provide up to 15000 lumens and 24 hours of battery backup in completely automated operation. Thor by Truelite was developed after the huge success of our 4G smart light on the same principle and technology for higher lighting requirements. The light has a better output with longer battery backup than regular all-in-one solar lights.THOR Smart Street Light
50 I 60 I 70 I 80 I 90 I 100Watts
Truelite’s Thor smart solar LED street light is the most advanced form of solar roadway lighting available, that integrates a lithium battery and smart controller into the light head that can provide up to 15000 lumens and 24 hours of battery backup in completely automated operation. Thor by Truelite was developed after the huge success of our 4G smart light on the same principle and technology for higher lighting requirements. The light has a better output with longer battery backup than regular all-in-one solar lights.Solar Lighting
Product Specification
| Electrical Data | |
|---|---|
| Operating Voltage | 18V-40VDC |
| No of LEDs | Philips Lumileds SMD 5050 60 Pcs |
| Driver Power Efficiency | >90% |
| Rated Power | 90W |
| Power Factor(PF) | >0.95 |
| Total Harmonic Distortion | < 20% |
| Drive Maximum Current from Battery Discharge | 15 Amps |
| Dimming | Optional |
| Control Method | Automatic dusk to dawn / Time Control / Manual ON-OFF |
| Lighting Modes | 100% Continuous lighting / Energy saving / Customized modes. |
| Discharge Time | >24 Hours |
| Light Data | |
| Color Temperature | 3000K/4000K/5000K/5700K |
| CRI | >81 |
| Beam Angle | 10°,25°,40°,60°,90°,120°,150° |
| Efficiency of LED | 150.5 lm/W |
| Luminous Flux | 13500 lm |
| Led Chip | LUMILEDS LUXEON 5050 |
| Service Life | 60000 Hours |
| Environmental Data | |
| Working Ambient Temperature | -40° to +60° |
| IP Grade | IP67 |
| Relative Humidity(RH) | 10%-95% |
| Cooling | Conventional |
| Certificate | UL/ CUL /DLC/ LM79 / ENEC /CB/CE/ ERP/ RoHS /PSE /IK08 |
| Mechanical Data | |
|---|---|
| Product Finish | Gray |
| Light Fixture Material | Aluminum |
| Dimension | 800*310*116mm |
| Weight | 20.35Kg |
| Luminaire Fixing | Pole top/Tenon mount |
| Solar Module | |
| Wattage | 360W |
| No of cells | 72 |
| Cell Type | MONO Crystalline |
| Busbars | 5 |
| Options | Flat solar modules /Warped solar modules |
| Battery Bank | |
| Battery Capacity | 2160Wh |
| Working Hours daily | 12 hours |
| Total Battery Working Hours | 24 hours |
| Battery type | LiFePO4 (li-ion cells) |
| Option for Battery Maximum Capacity | 2160Wh |
| *All parameters are measured @ ambient temperature Tc 25 degree | |
Dimensions
Lighting Distribution
Lighting Distribution
Product Components
